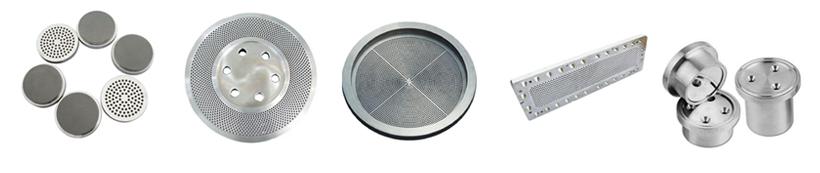

Cleaning Objects

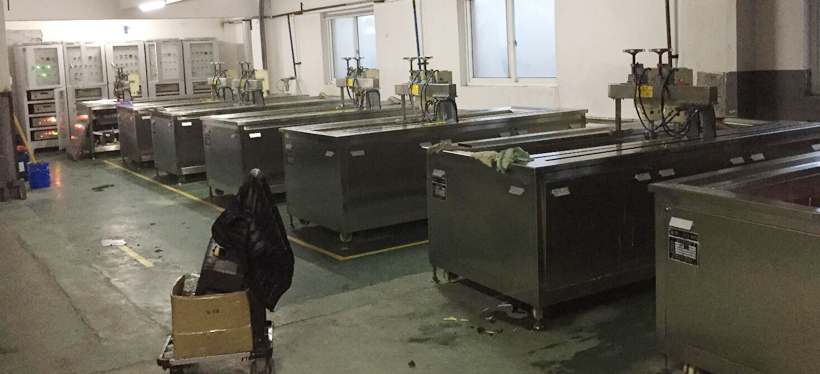

Features:It is using horn type ultrasonic cleaning on the Spinneret (according to the amount of cleaning, choose single or double)
Amplitude of vibration is 30 times wider than the conventional throw-in transducer type or the cleaning bath type for expanded cleaning power.
Continuous operation, special alloy has enhanced durability of the horn.
Specifications:
| Model |
NFU-1530S |
NFU-1530D |
| Cleaning capacity |
24pcs |
48pcs |
| Horn Frequency |
15KHz |
15KHz |
| Ultrasonic Power(Horn) |
4000W |
4000W x 2 |
| Power Density |
15-17W/cm2 |
15-17W/cm2 |
| Outline Dimension |
2200×1020×1450 |
2200×1220×1450 |
| Cleaning Tank Dimension |
1840×480×300/320 |
1840×480×300/320 |
| Control Panel Dimension |
650×650×1460 |
650×650×1460 |
| Horn |
Rectangle |
Rectangle |
| Material of Horn |
TC4 |
TC4 |
| Power Supply |
380V 50Hz |
380V 50Hz |
| Heating Power |
6KW |
9KW |
| Working Temp. |
50 degree |
50 degree |
| Inlet |
DN15 |
DN15 |
| Outlet |
DN40 |
DN40 |
| Cleaning Time |
2-3 hours |
2-3 hours |
| Cleaning model |
X-axis travel |
X-axis travel |
Remark:Couldn’t list all here. It can be customized according to the size of parts to be cleaned.
Device cleaning capacity in accordance with the specification of Spinneret of φ105mm.
